Parylene Coating OEM Service
Parylene Nano-Coating Solution
Functional coating system(FCS) provides a unique and easy-to-produce nano-coating solution. It uses vacuum chemical vapor deposition CVD technology to perform nano-scale organic polymerization stacking, and uses gas diffusion flow field to control penetration into every tiny crack of the plated object for coating.

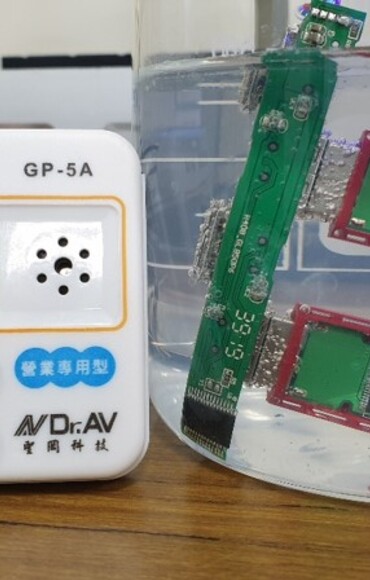

Electronic products are deeply damaged by water vapor penetration, such as PCBA circuit boards, connectors, IC components, etc., FCS nano-coating can be coated in an all-round way without affecting all appearance dimensions.
On the basis of not affecting the signal continuity, FCS nano-coating provides multi-functional protection solutions for electronic products IP level waterproof, salt spray resistance, chemical acid and alkali corrosion resistance, and high voltage breakdown resistance.
Parylene Nano-Coating Key Technology
(1)Monomer molecules are evenly distributed in the chamber.
(2) Active monomer molecules form a nano protective film on the surface of the product.
(3) Nanoscale film formation mechanism: 50nm~25000nm(0.05~25µm).
Service Process
Step1
Incoming Material Inspection & Functionality Confirmation
- IP waterproofing, high-voltage insulation, chemical resistance, surface lubrication
Step2
Coating Material & Thickness Selection
- Parylene - C
- Parylene - N
- Parylene - AF4
Step3
Fixture Protection Selection
- Masking for areas requiring no coating
Step4
Incoming Material Cleaning & Pre-treatment
- Removal of surface contaminants
Step5
Drying Process
- Elimination of moisture from materials
Step6

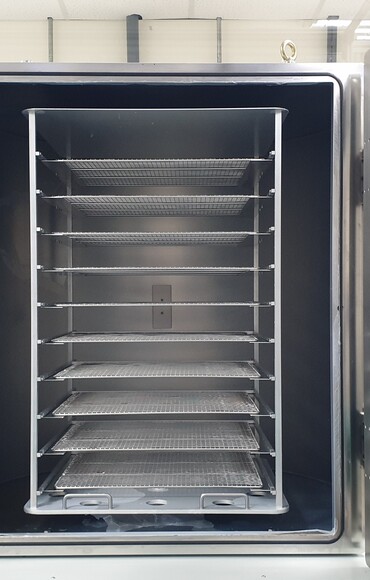

Nano Coating Process
- Coating application using specialized equipment
Step7
Fixture Removal & Appearance Inspection
- Removal of protective fixtures and coating appearance verification
Step8
Thickness Inspection & Packaging for Shipment
- Thickness measurement, final inspection, and packaging for delivery
.
Characteristics and Advantages of Parylene Nano-coating
Conformal Coating
1. Wet coating：It cannot completely cover the slits or corners of the product (thin film thickness), forming product protection defects and affecting the functional life.
2. Nano-coating：Completely infiltrate all parts of the product with nano-molecules, and form a protective film by polymerization.
1. Wet coating：It cannot completely cover the slits or corners of the product (thin film thickness), forming product protection defects and affecting the functional life.
2. Nano-coating：Completely infiltrate all parts of the product with nano-molecules, and form a protective film by polymerization.
